L06 / Single-phase AC circuits

Single-Phase AC Circuits II

Calculate real, reactive, complex, and apparent power with consistent load and generator signs.

Available19 slides
Complex power, signs, and the power triangle

01 / UNDERSTAND & PREDICT

Understand the model, then predict the result

Finalized lecture slides

Open / download original PDF ↗

Follow the original explanations, diagrams, derivations, and examples in slide order, then use the companion experiment below.

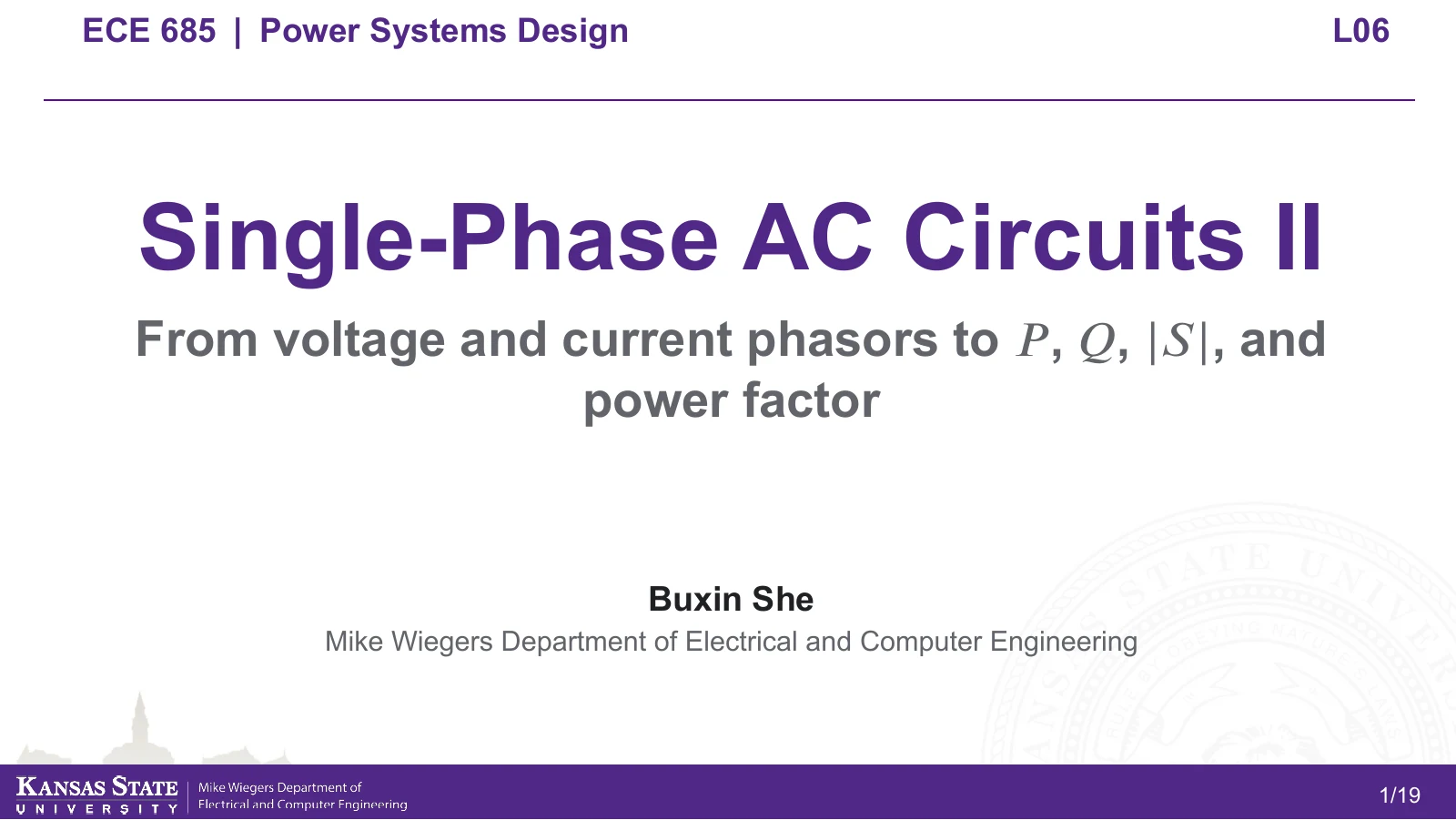

L06 original slide 1 of 19
L06 · 1 / 19
Slide text
Loading slide text.

Figures and page order follow the student PDF for this lecture.

At 120 V RMS and 10 A RMS, voltage leads current by 50°. Why is P not 1200 W? How does source current change when pf reaches 0.95?
  • Keep RMS, cosine reference, and current direction consistent.
  • Use the current conjugate to calculate P, Q, |S|, and power factor.
  • Calculate target Q, capacitor rating, and corrected source current.
Single-phase AC circuits: concept and calculation route
Course-authored concept route; the numerical experiment follows below.

RMS and phasors

v(t)=\sqrt2 V\cos(\omega t+\phi_V)

The waveform coefficient is peak = √2×RMS, while phasor magnitude is RMS. The original L05 page retains the full conversion and phasor-addition lesson; this module connects it to power.

Conjugate and signs

S=\mathbf V\mathbf I^*=VI(\cos\Delta\phi+j\sin\Delta\phi)

Current enters the positive load terminal, using the passive convention. Δφ = φV−φI; positive Δφ means lagging current and positive Q. Calculate S = V I* before reading P and Q.

Power triangle

|S|^2=P^2+Q^2,\qquad pf=\cos\Delta\phi

P is the real-axis projection of |S| and pf = P/|S|. Negative Q means leading current; a pf number alone omits lead/lag. Instantaneous power oscillates while its average is P.

Baseline example: check each step

  1. Δφ = 50° and |S| = 1200 VA.
  2. P ≈ 771.345 W, Q ≈ 919.253 var, pf ≈ 0.643 lagging.
  3. Target Q ≈ 253.529 var; capacitor rating ≈ 665.724 var.
  4. C ≈ 122.628 μF; load current remains 10 A while source current falls to ≈ 6.766 A.
Open the L05 waveform and phasor-addition lesson →
Original slide headings for this lecture17
  1. 1Lecture outline
  2. 2Starting problem
  3. 3Starting-problem solution
  4. 4Instantaneous power
  5. 5Average real power P
  6. 6Reactive power Q
  7. 7Recap: complex and apparent power
  8. 8Power triangle
  9. 9Power factor
  10. 10Load and generator sign conventions
  11. 11Reactive power of loads and generators
  12. 12Example setup
  13. 13CE-2B Step 1
  14. 14CE-2B Step 2
  15. 15CE-2B Step 3
  16. 16CE-2B Step 4
  17. 17Complex-power summary
